Implement
40 - Electrical( Электрические)
Amber Warning Lamp(Янтарь Сигнальная Лампа)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | A75748 | Bulb | 1 | S8, ANSI 199 | ||
| 2 | 12H292 | Lock Washer | 1 | 1/2" | ||
| 3 | R69279 | Washer | 1 | |||
| 4 | 14H865 | Nut | 1 | 1/2" | ||
| 5 | A65218 | Lens | 1 | |||
| 6 | AA56281 | Lamp | 1 |

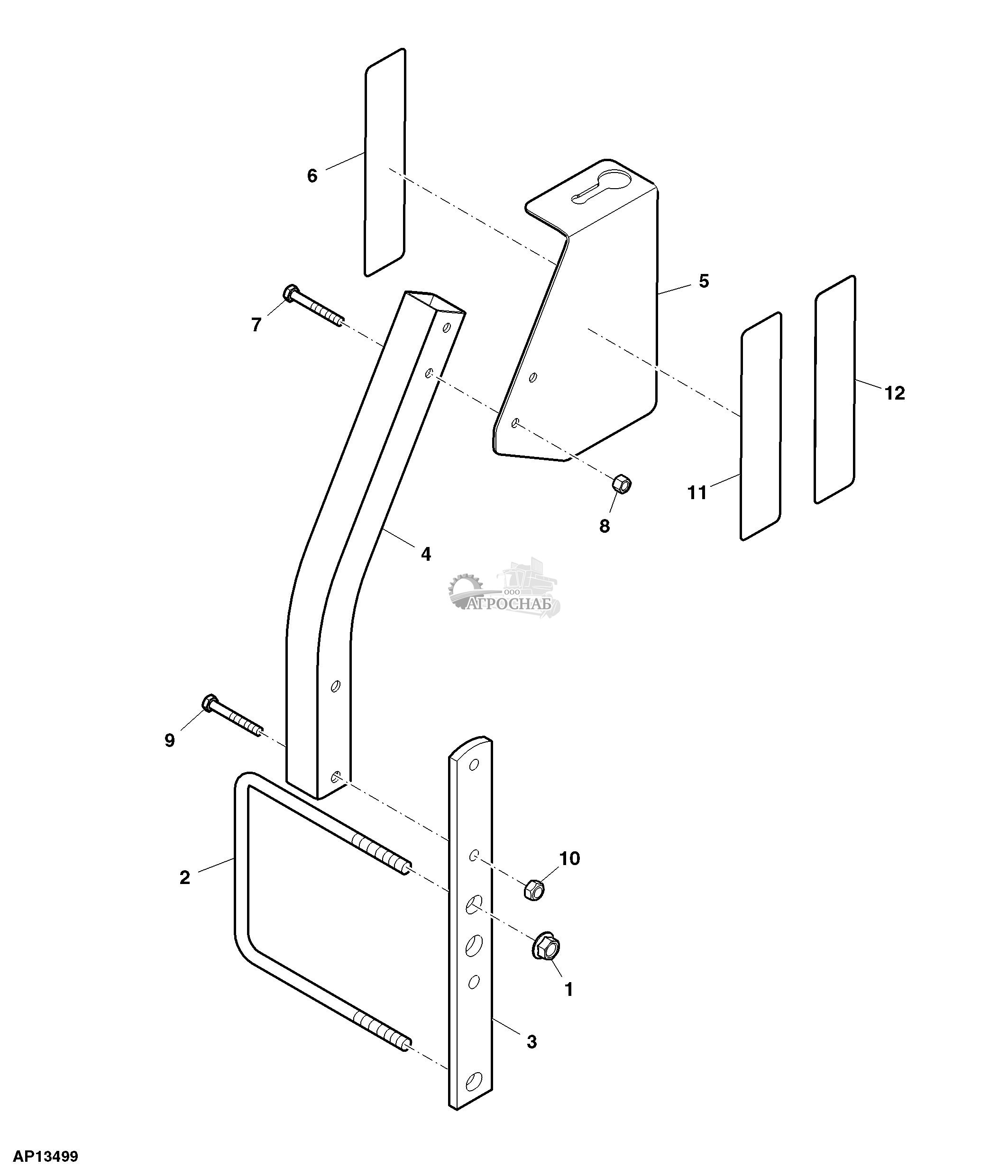

Exterior Light Brackets, RH Illustrated(Внешний свет скобках показана правая сторона)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | 14M7299 | Flange Nut | 2 | M12 | ||
| 2 | A46534 | U-Bolt | 1 | |||
| 3 | A49578 | Strap | 1 | |||
| 4 | A49581 | Structural Tube | 1 | |||
| 5 | A87683 | Bracket | 1 | RH | ||
| A87682 | Bracket | 1 | LH | |||
| 6 | JD5920 | Reflector | 1 | Red | ||
| 7 | 19M7185 | Cap Screw | 2 | M8 X 60 | ||
| 8 | E64256 | Lock Nut | 2 | |||
| 9 | 19M7328 | Cap Screw | 2 | M10 X 70 | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 10 | A51212 | Lock Nut | 2 | |||
| 11 | JD5922 | Reflector | 1 | Orange | ||
| 12 | JD5921 | Reflector | 1 | Yellow |

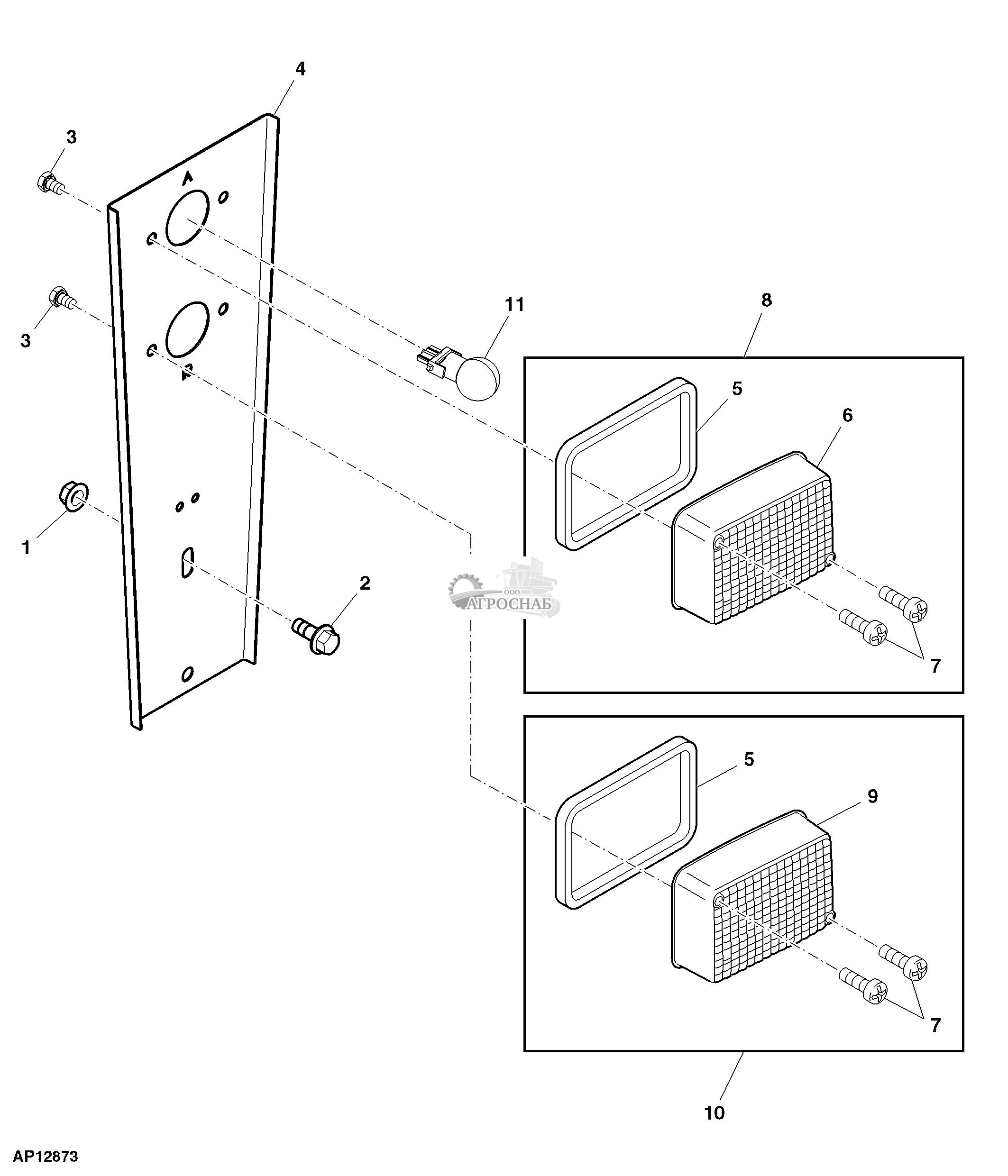

Warning Lights(Сигнальные Лампы)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | 14M7296 | Flange Nut | 2 | M10 | ||
| 2 | 19M7785 | Screw | 2 | M10 X 25 | ||
| 3 | 19M7297 | Cap Screw | 4 | M8 X 12 | ||
| 4 | A91163 | Plate | 1 | |||
| 5 | A63127 | Gasket | 2 | ORDER AA45031 | ||
| 6 | A63124 | Lens | 1 | Amber | ||
| 7 | A63635 | Screw | 4 | |||
| 8 | AA45032 | Turn Signal Lamp | 1 | |||
| 9 | A62454 | Lens | 1 | Red | ||
| 10 | AA45031 | Lamp | 1 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | H133384 | Bulb | 2 | S8, ANSI 3057 |

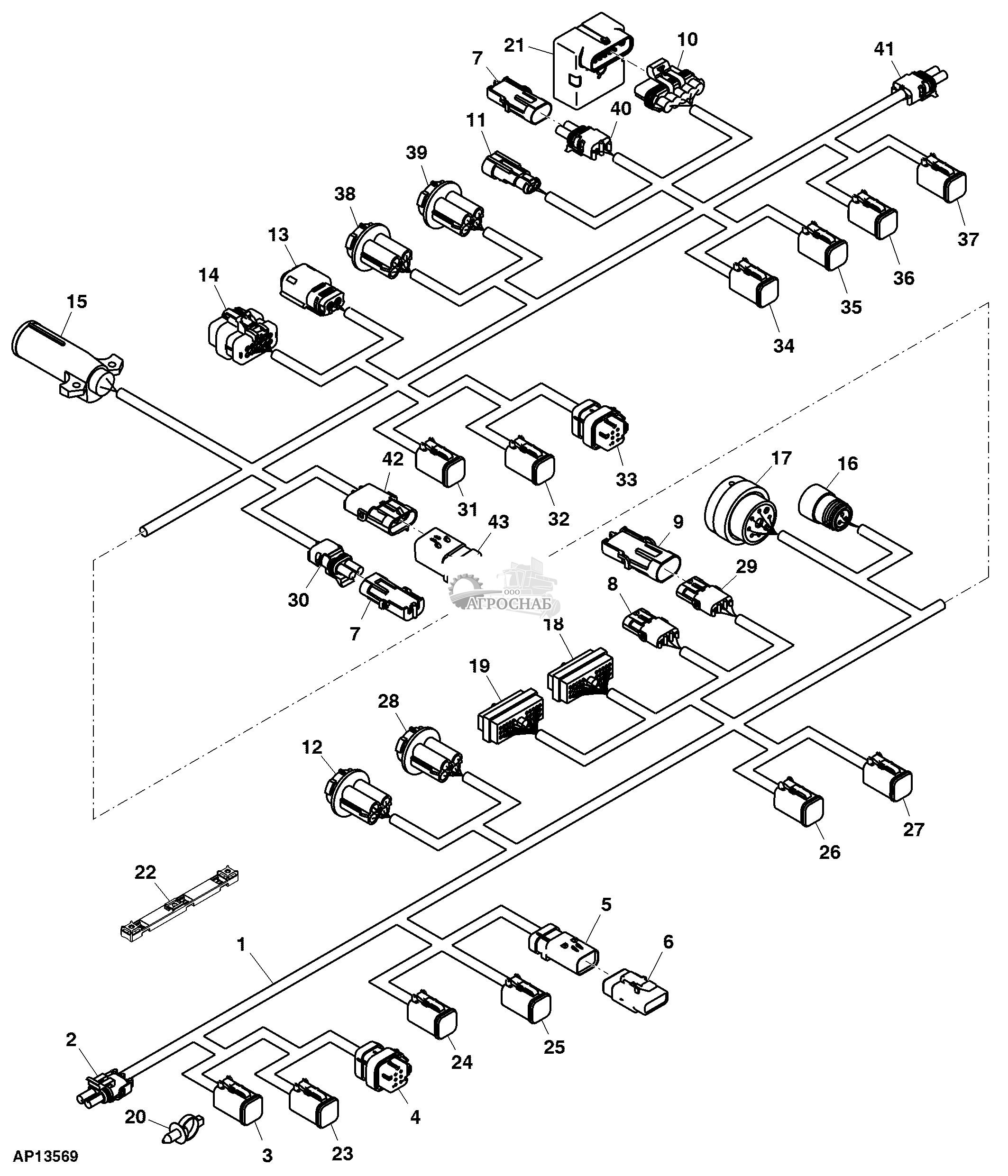

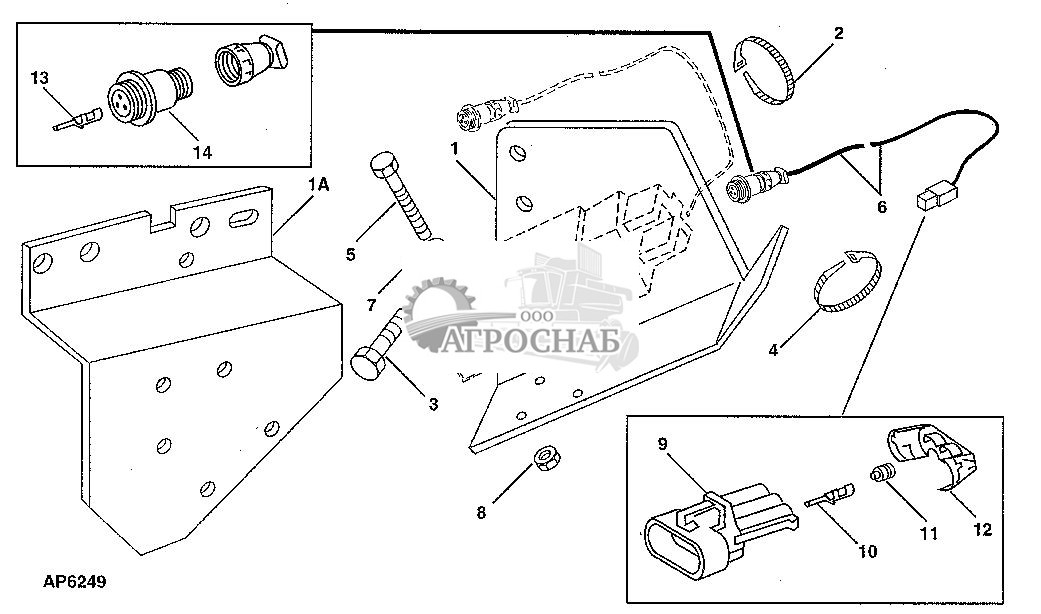

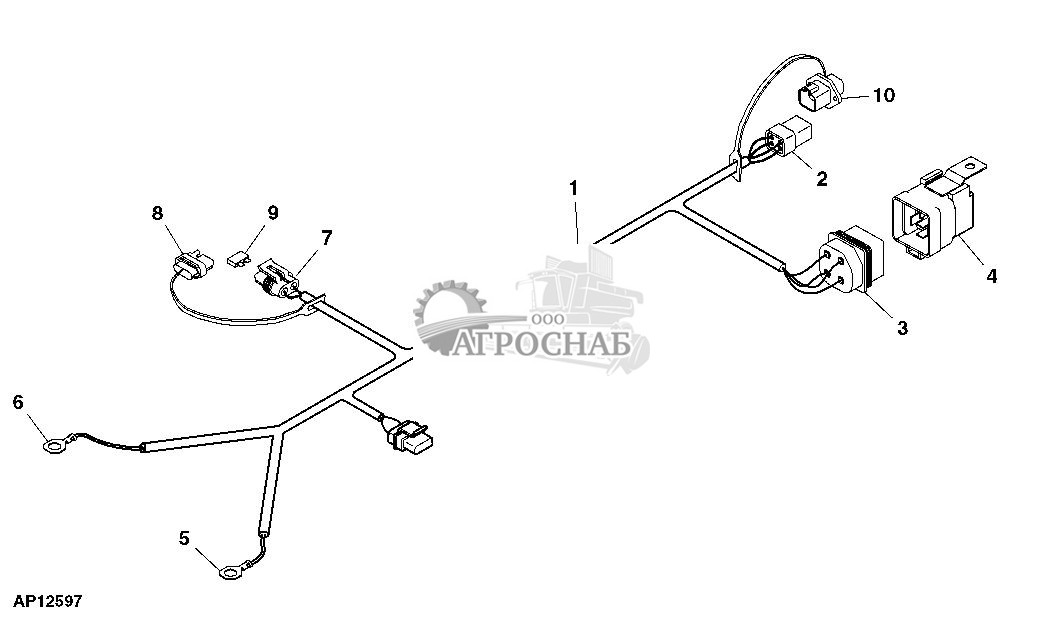

Wiring Harness, Backbone, 1700 TR(Жгут проводов магистральных ТР)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AA76764 | Wiring Harness | 1 | |||
| 2 | RE12363 | Elec. Connector Terminal | 1 | Left Amber Light | ||
| 3 | 57M9957 | Elec. Connector Housing | 1 | Row 01 | ||
| 4 | 57M9786 | Elec. Connector Housing | 1 | Height | ||
| 5 | 57M9784 | Elec. Connector Housing | 1 | Motion | ||
| 6 | 57M9780 | Elec. Connector Housing | 1 | Dust Cap | ||
| 7 | R78053 | Electrical Connector Assy | 2 | Dust Cap | ||
| 8 | R78054 | Electrical Connector Assy | 1 | Vacuum 1 | ||
| 9 | RE12364 | Electrical Connector Assy | 2 | Dust Cap | ||
| 10 | 57M7301 | Elec. Connector Housing | 2 | Enhanced Light | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | 57M10350 | Elec. Connector Housing | 1 | Height Resistor | ||
| 12 | R114917 | Electrical Lamp Socket | 4 | Left Red | ||
| 13 | 57M9683 | Elec. Connector Housing | 1 | High Current Power | ||
| 14 | 57M9800 | Elec. Connector Housing | 1 | CAN Terminator | ||
| 15 | 57M8340 | Electrical Connector Assy | 1 | Tractor Lights | ||
| 16 | 57M7636 | Electrical Connector Assy | 1 | Unswitched Power | ||
| 17 | 57M10720 | Elec. Connector Housing | 1 | |||
| A65671 | Cap | 1 | Dust Cap | |||
| 18 | 57M9172 | Elec. Connector Housing | 2 | Wedge Box Connector B | ||
| 19 | 57M9169 | Elec. Connector Terminal | 1 | Wedge Box Connector A | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 20 | RE258807 | Tie Band | AR | |||
| 21 | RE152269 | Module | 1 | |||
| 22 | A90121 | Clip | 1 | |||
| 23 | 57M9957 | Elec. Connector Housing | 1 | Row 02 | ||
| 24 | 57M9957 | Elec. Connector Housing | 1 | Row 03 | ||
| 25 | 57M9957 | Elec. Connector Housing | 1 | Row 04 | ||
| 26 | 57M9957 | Elec. Connector Housing | 1 | Row 05 | ||
| 27 | 57M9957 | Elec. Connector Housing | 1 | Row 06 | ||
| 28 | R114917 | Electrical Lamp Socket | 1 | Left Amber | ||
| 29 | R78054 | Electrical Connector Assy | 1 | Vacuum 2 | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 30 | RE12363 | Elec. Connector Terminal | 1 | Drive | ||
| 31 | 57M9957 | Elec. Connector Housing | 1 | Row 07 | ||
| 32 | 57M9957 | Elec. Connector Housing | 1 | Row 08 | ||
| 33 | 57M9786 | Elec. Connector Housing | 1 | Height | ||
| 34 | 57M9957 | Elec. Connector Housing | 1 | Row 09 | ||
| 35 | 57M9957 | Elec. Connector Housing | 1 | Row 10 | ||
| 36 | 57M9957 | Elec. Connector Housing | 1 | Row 11 | ||
| 37 | 57M9957 | Elec. Connector Housing | 1 | Row 12 | ||
| 38 | R114917 | Electrical Lamp Socket | 1 | Right Red | ||
| 39 | R114917 | Electrical Lamp Socket | 1 | Right Amber | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 40 | RE12363 | Elec. Connector Terminal | 1 | Auxillary Power | ||
| 41 | RE12363 | Elec. Connector Terminal | 1 | Right Amber Light | ||
| 42 | R78054 | Electrical Connector Assy | 1 | RPM | ||
| 43 | 57M9780 | Elec. Connector Housing | 1 | Dust Cap |

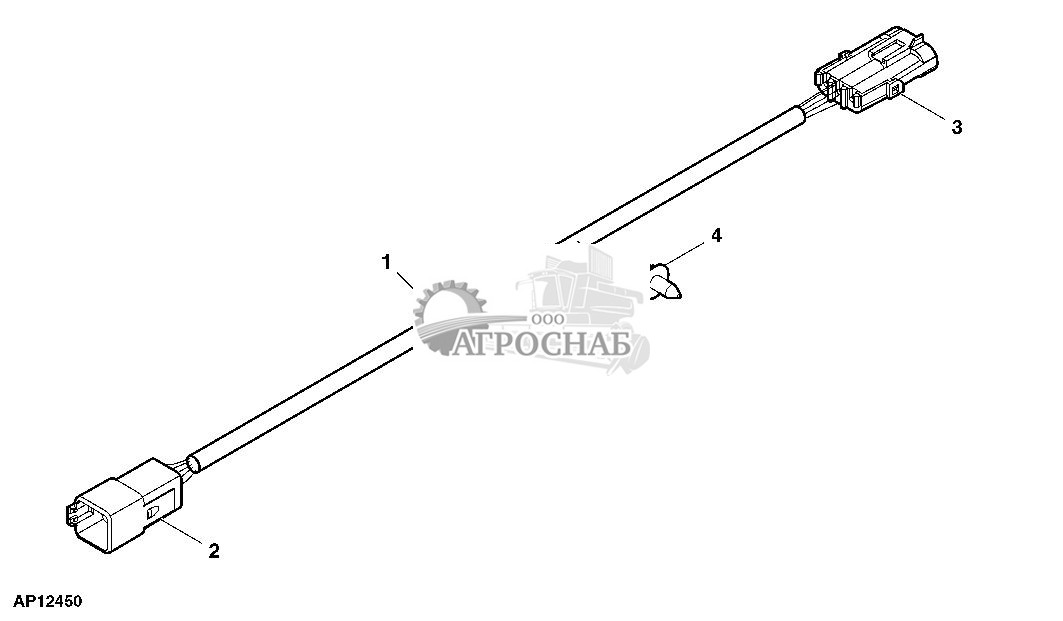

Wiring Harness, Implement Pigtail Terminator(Жгут Проводов Выполнить Косичку Терминатор)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | PF81137 | Wiring Harness | 1 | Pigtail Terminator | ||
| 2 | 57M9685 | Elec. Connector Housing | 1 | Dust Cap For Valve Power | ||
| 3 | 57M9804 | Elec. Connector Housing | 1 | CON A; CAN/ECU Power | ||
| 4 | 57M7260 | Elec. Connector Housing | 1 | CON B; Terminator | ||
| 57M7291 | Electrical Connector Assy | 1 | ||||
| 5 | RE207311 | Electronic Control Unit | 1 |

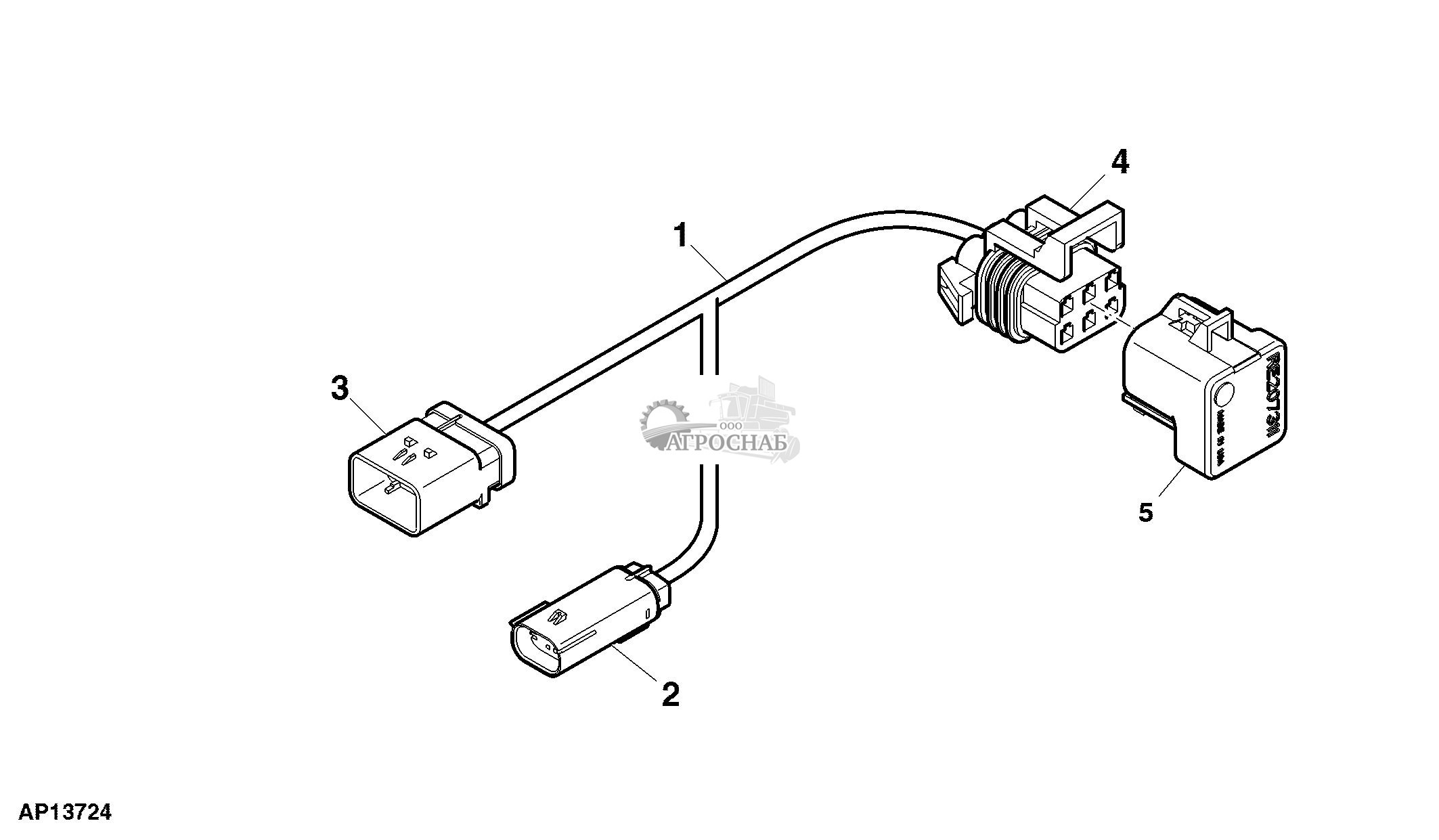

Wiring Harness, Seed Adapter(Жгут Проводов Адаптера Семян)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AA73821 | Wiring Harness | 1 | Seed Adapter | ||
| 2 | 57M9956 | Elec. Connector Housing | 1 | Row Harness | ||
| 3 | R78054 | Electrical Connector Assy | 1 | Sensor | ||
| 4 | RE258807 | Tie Band | 6 |

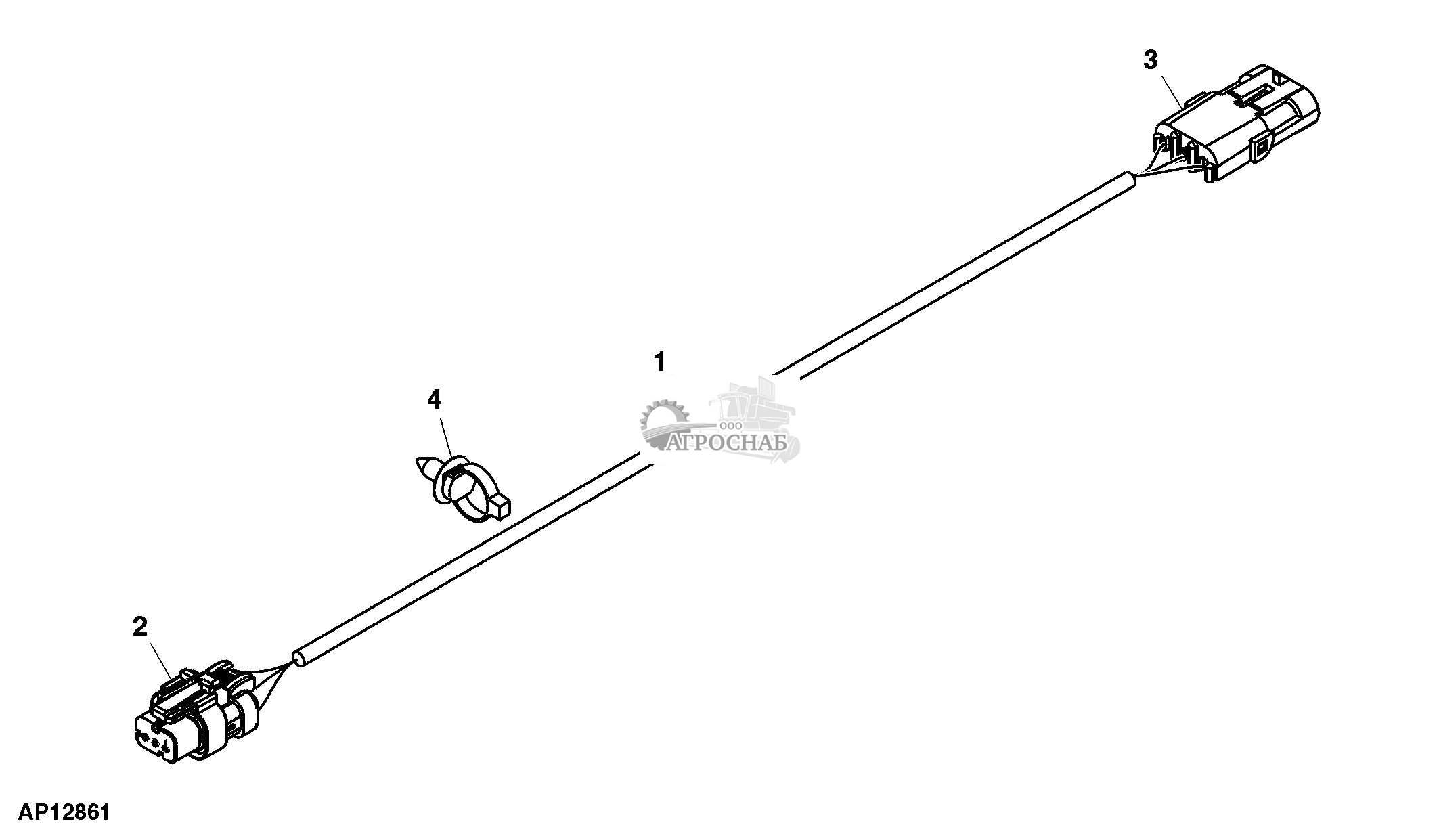

Wiring Harness, Twin Row Switch Adapter(Жгут Проводов Две Строки Переключатель Адаптер)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AA73823 | Wiring Harness | 1 | |||
| 2 | 57M9789 | Elec. Connector Housing | 1 | Height | ||
| 3 | RE12363 | Elec. Connector Terminal | 1 | Height Switch | ||
| 4 | RE258807 | Tie Band | 2 |

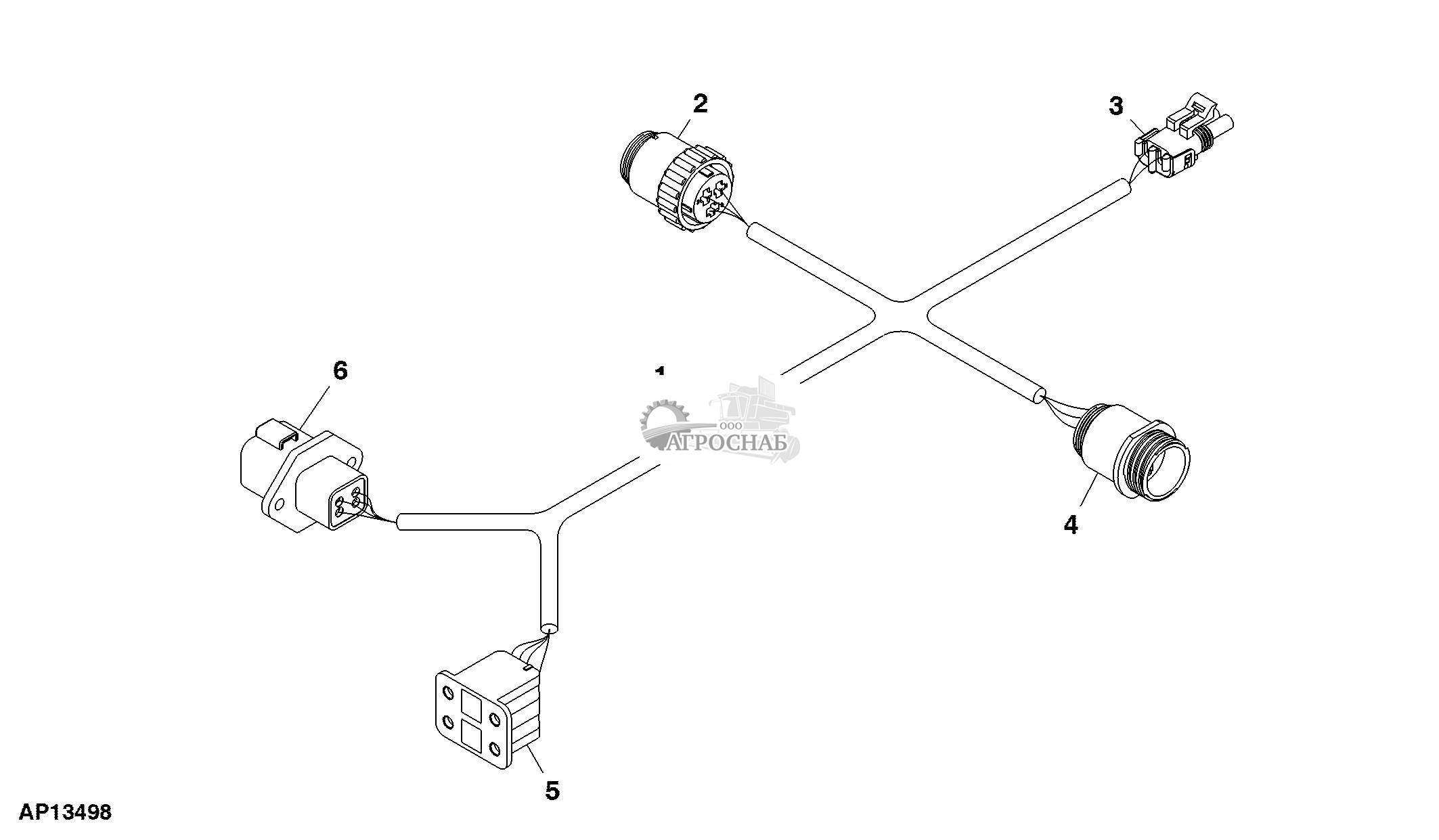

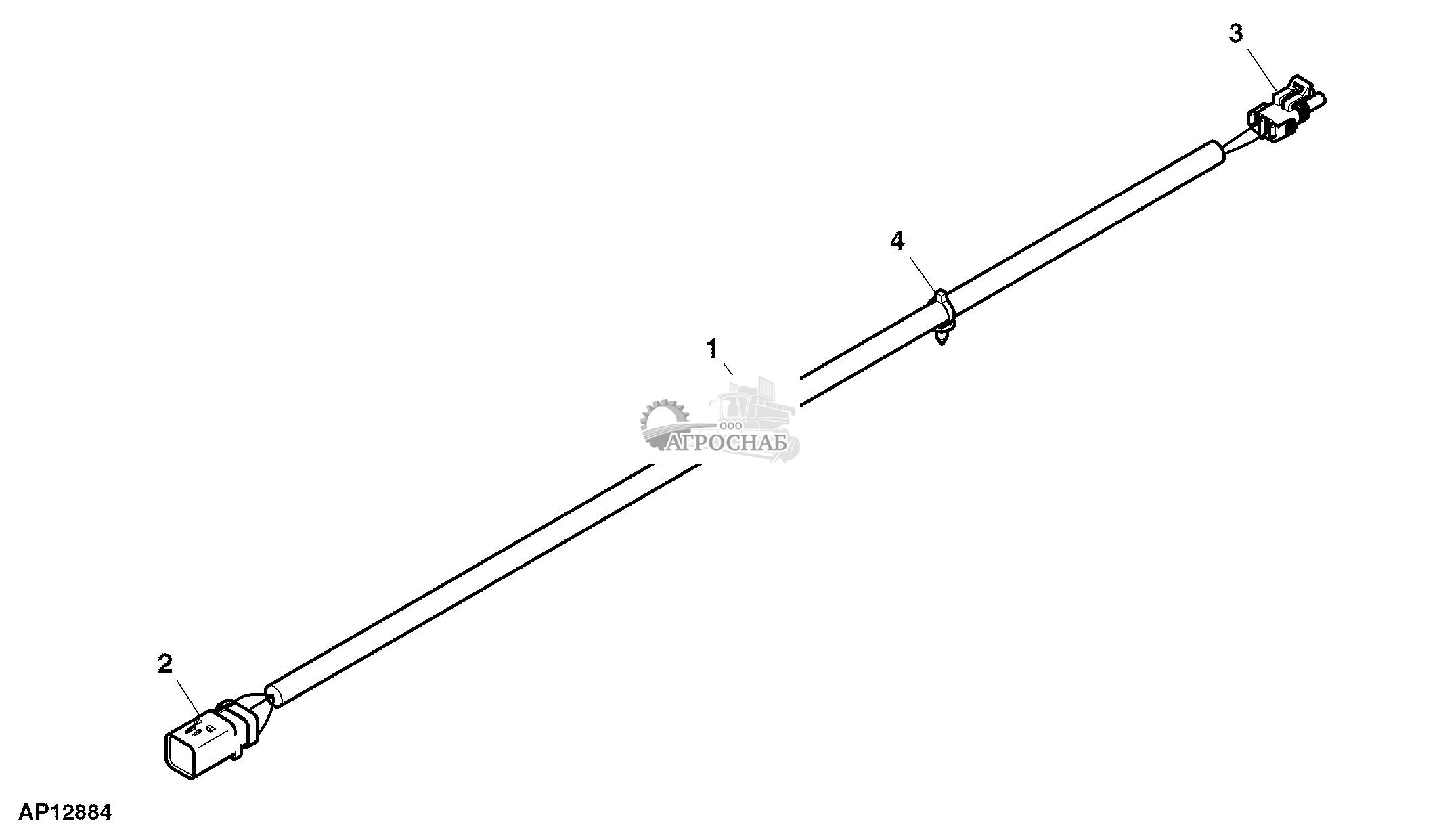

Wiring Harness, Motion Sensor Adapter(Жгут Проводов Адаптера Датчик Движения)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AA76968 | Wiring Harness | 1 | |||
| 2 | 57M9780 | Elec. Connector Housing | 1 | Motion | ||
| 3 | R78054 | Electrical Connector Assy | 1 | Sensor | ||
| 4 | RE258807 | Tie Band | 1 |

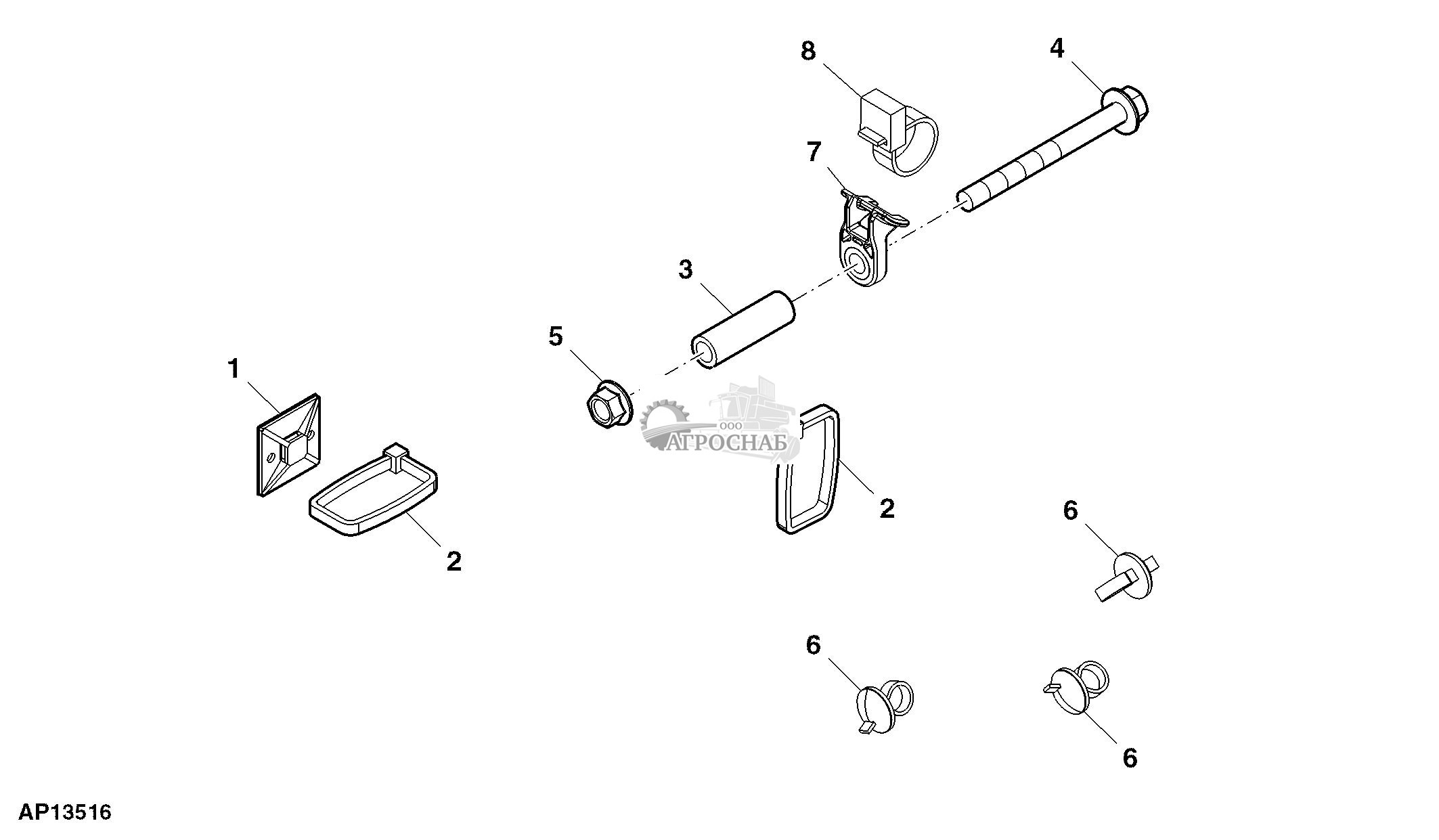

Fittings, Motion Sensor Adapter(Фитинги Датчик Движения Адаптер)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | A87105 | Anchor | 1 | |||
| 2 | H77698 | Tie Band | 2 | |||
| 3 | A44705 | Bushing | 1 | |||
| 4 | 19M7812 | Screw | 1 | M10 X 100 | ||
| 5 | 14M7296 | Flange Nut | 1 | M10 | ||
| 6 | H226340 | Tie Band | 3 | |||
| 7 | N380408 | Clamp | 1 | |||
| 8 | H224073 | Tie Band | 1 |
Wiring Harness, Compressor Power(Жгут Проводов Компрессора Мощность)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AA75965 | Wiring Harness | 1 | Compressor Power | ||
| 2 | 57M9131 | Elec. Connector Terminal | 1 | Convenience | ||
| 3 | 57M7555 | Elec. Connector Housing | 1 | 40A Relay | ||
| 4 | TCA51227 | Relay | 1 | |||
| 5 | 57M9195 | Elec. Connector Terminal | 1 | Battery Terminal (-) | ||
| 6 | 57M8867 | Elec. Connector Terminal | 1 | Battery Terminal (+) | ||
| 7 | ...... | Elec. Connector Housing | 1 | 40A, Fuse | ||
| 8 | 57M8487 | Electrical Connector Cap | 1 | |||
| 9 | 57M7237 | Fuse | 1 | 10 AMP | ||
| 10 | 57M10672 | Elec. Connector Housing | 1 | Dust Cap Lanyard |

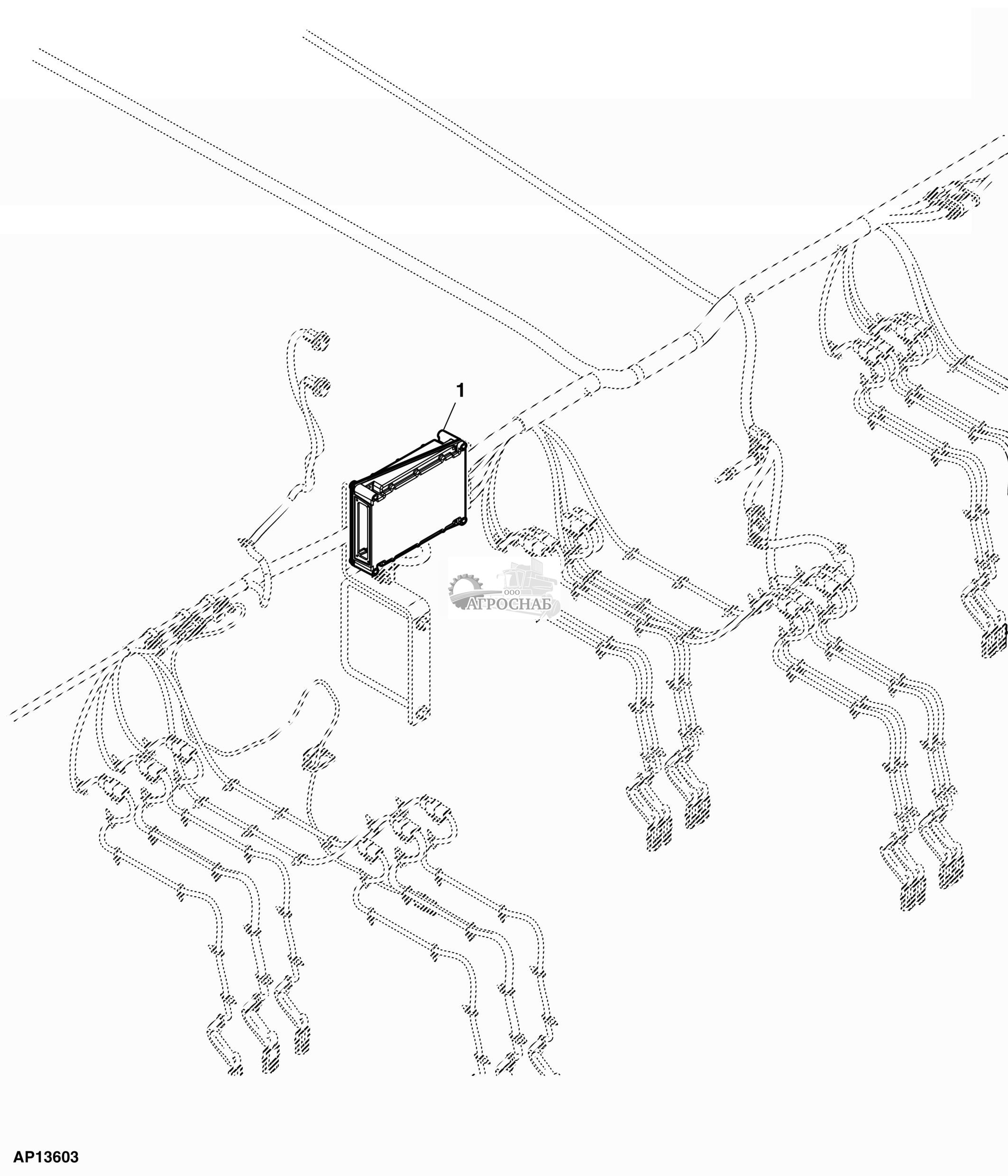

Controller, ISO Seed Monitor Variable Rate Drive(Контроллер семян ИСО монитор привод вариатора, который )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AA74595 | Control | 1 | (A) | ||
| AA84168 | Control | 1 | (A) |

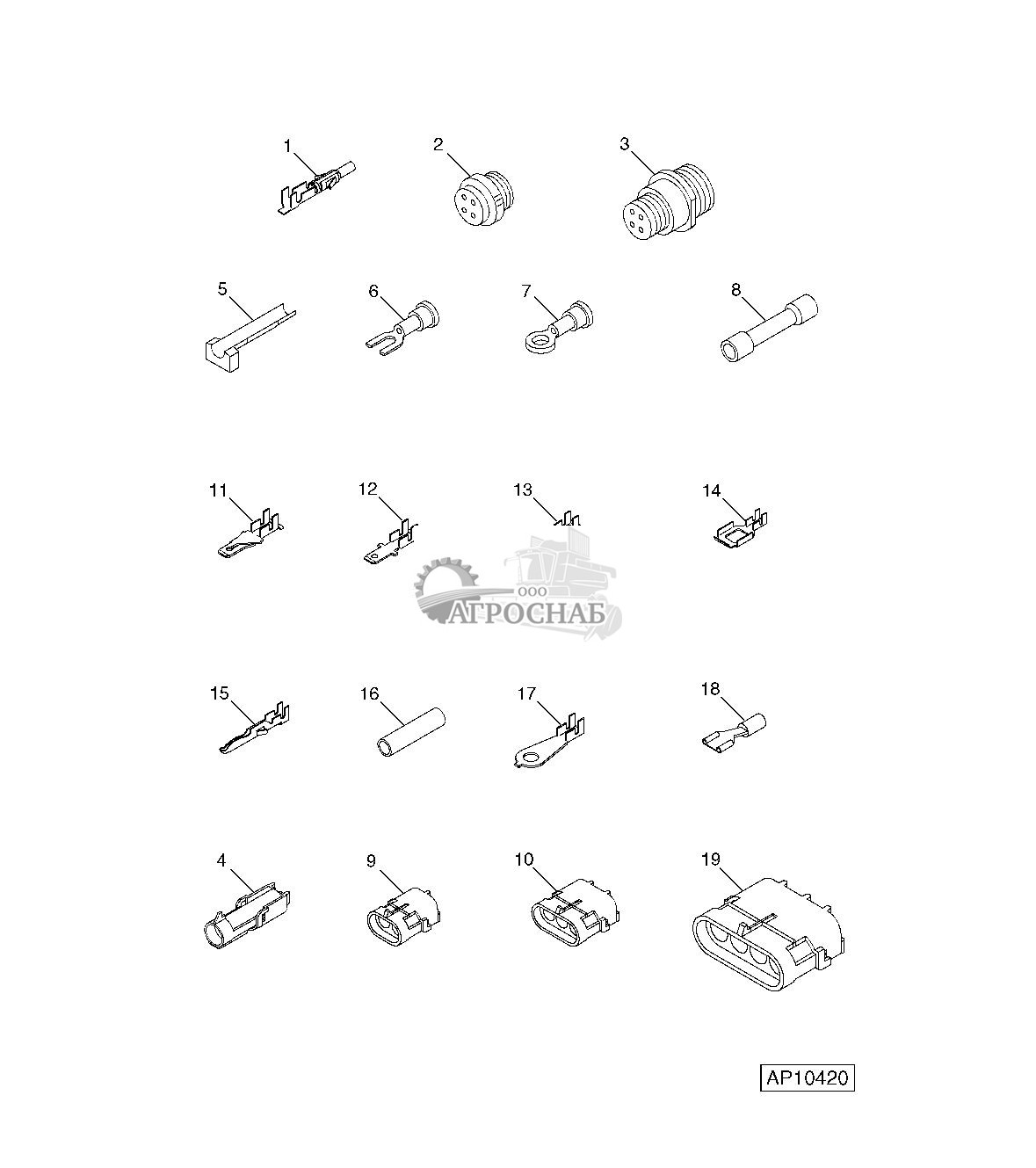

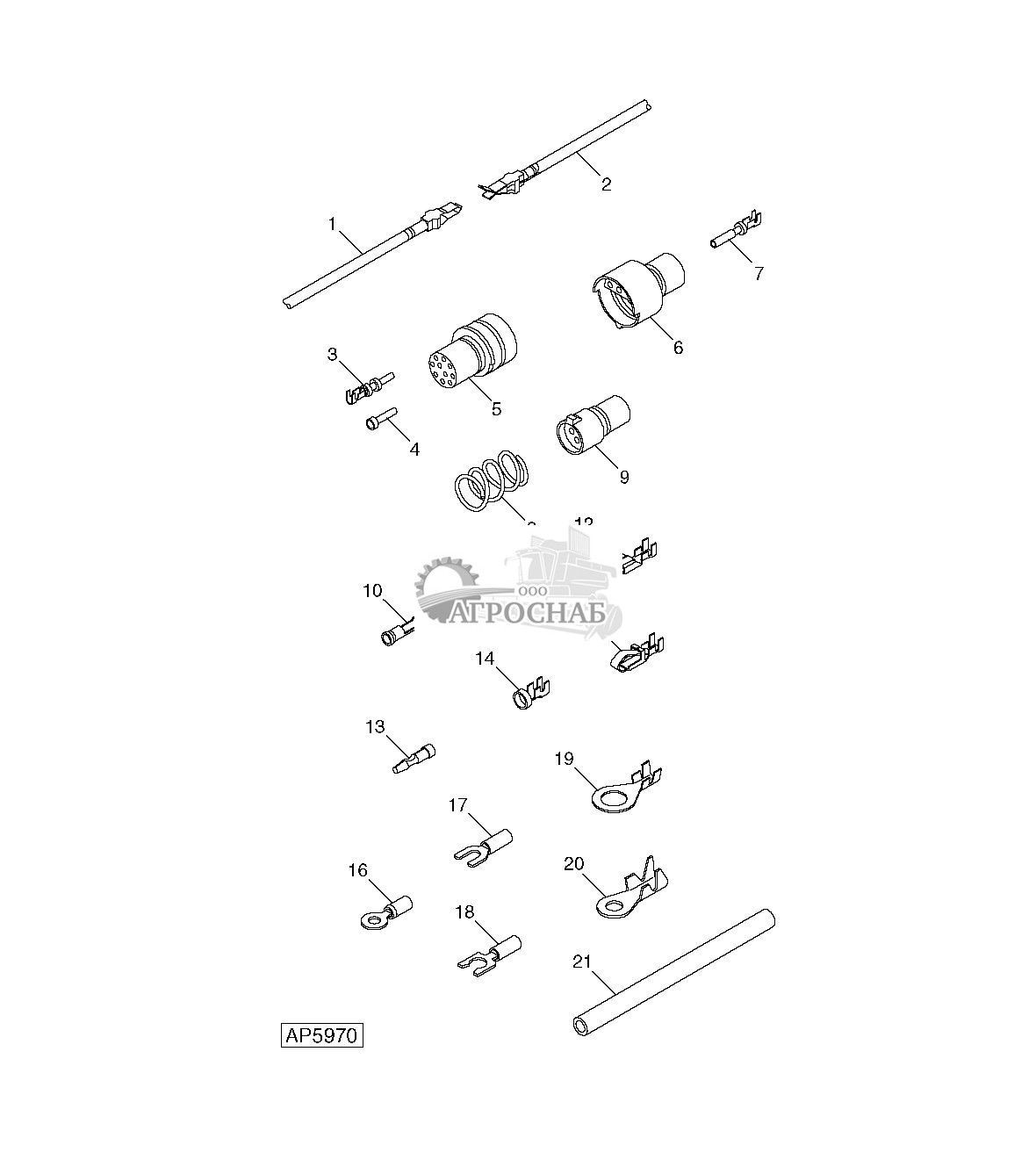

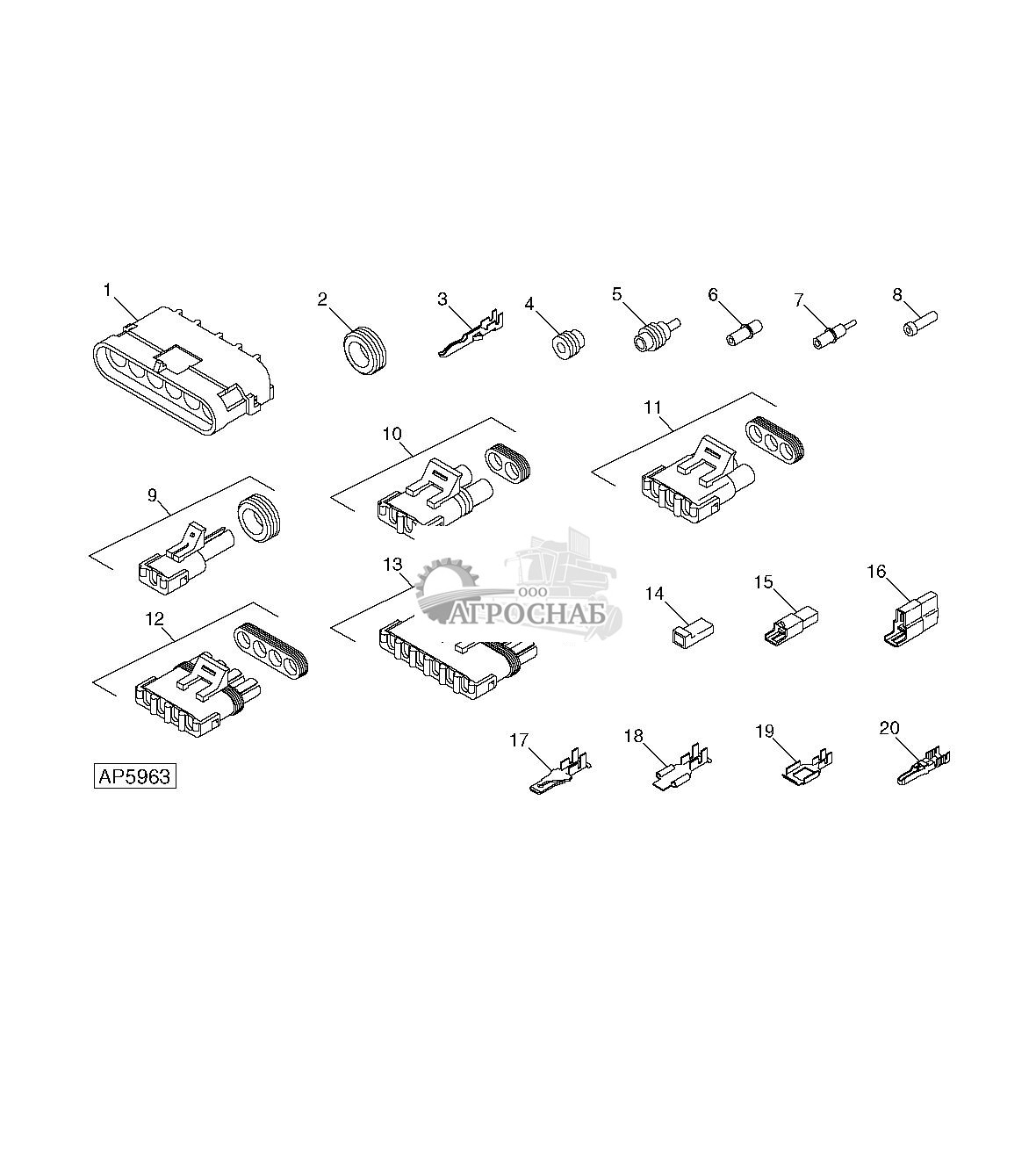

Weather Pack™ Terminals / Connectors(Погода Пакет Разъемы Терминалы )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | R78063 | Elec. Connector Seal | 1 | 16 GA. Wire; Gray | ||
| R78059 | Electrical Connector Assy | 1 | (D) 18 or 20 GA. Wire; Green | |||
| R78062 | Elec. Connector Seal | 1 | (D) 14 GA. Wire; Blue | |||
| 2 | R78057 | Elec. Connector Terminal | 1 | (D) 18 or 20 GA. Wire; No. 19 | ||
| R78060 | Elec. Connector Terminal | 1 | 14 or 16 GA. Wire; No. 15 | |||
| 3 | R78047 | Seal | 1 | (C) | ||
| 4 | RE12362 | Electrical Connector Assy | 1 | (B) | ||
| 5 | R78052 | Electrical Connector Assy | 1 | (B) | ||
| 6 | R78061 | Elec. Connector Terminal | 1 | (D) 14 or 16 GA. Wire; No. 15 | ||
| 7 | R78063 | Elec. Connector Seal | 1 | 16 GA. Wire; Gray | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 8 | RE12334 | Electrical Connector Assy | 1 | |||
| 9 | R78060 | Elec. Connector Terminal | 1 | 14 or 16 GA. Wire; No. 15 | ||
| 10 | R78048 | Elec. Connector Accessory | 1 | |||
| 11 | RE12363 | Elec. Connector Terminal | 1 | (B) | ||
| 12 | RE12331 | Electrical Connector Assy | 1 | |||
| 13 | R78053 | Electrical Connector Assy | 1 | (B) | ||
| 14 | RE12330 | Electrical Connector Assy | 1 | |||
| 15 | R78049 | Seal | 1 | (C) | ||
| 16 | RE12364 | Electrical Connector Assy | 1 | (B) | ||
| 17 | R78054 | Electrical Connector Assy | 1 | (B) | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 18 | RE12332 | Electrical Connector Assy | 1 | |||
| 19 | R78050 | Seal | 1 | (C) | ||
| 20 | RE12365 | Electrical Connector Assy | 1 | (A) | ||
| 21 | RE12333 | Electrical Connector Assy | 1 | |||
| 22 | R78055 | Electrical Connector Assy | 1 | (A) | ||
| 23 | R78061 | Elec. Connector Terminal | 1 | (D) 14 or 16 GA. Wire; No. 15 | ||
| R78058 | Electrical Connector Assy | 1 | (D) 18 or 20 GA. Wire; No. 19 | |||
| 24 | R78051 | Seal | 1 | (C) | ||
| 25 | RE12366 | Electrical Connector Assy | 1 | (A) | ||
| 26 | R78056 | Electrical Connector Assy | 1 | (A) | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 27 | R78064 | Elec. Connector Cavity Plug | 1 | (D) |

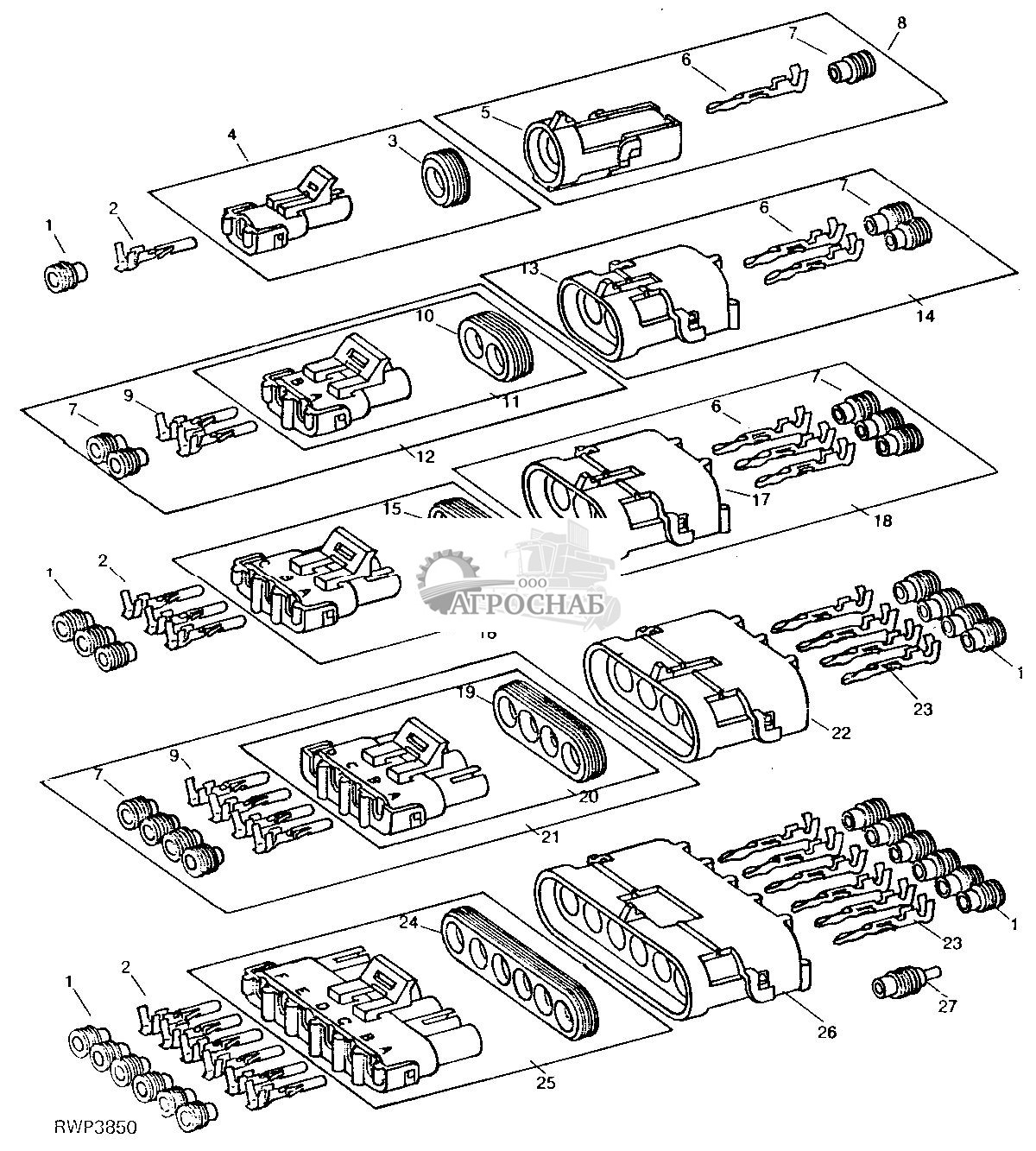

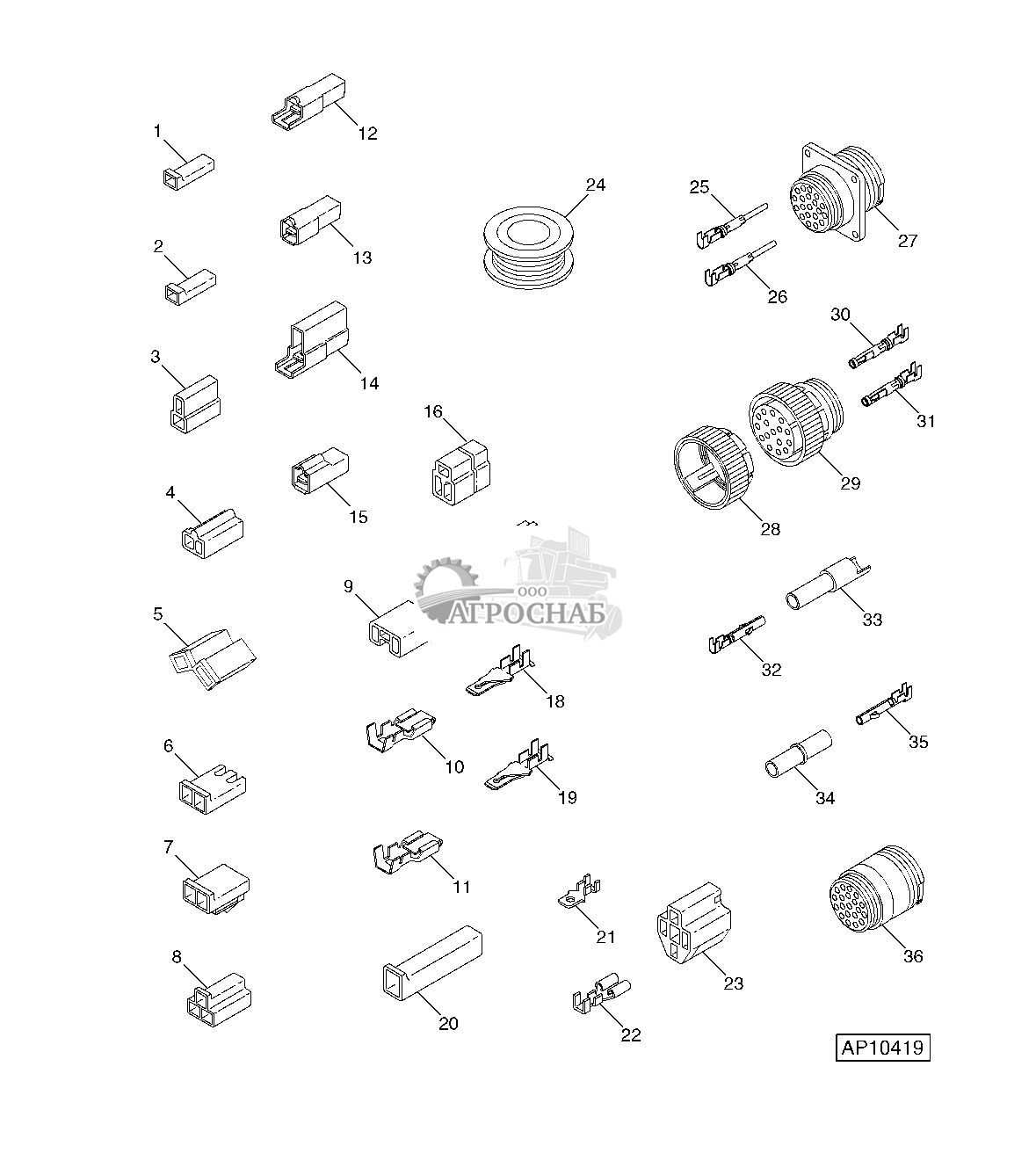

Electrical Connectors(Электрические Разъемы)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | T28583 | Elec. Connector Housing | 1 | (B) | ||
| 2 | M43835 | Electrical Connector Assy | 1 | (B) | ||
| 3 | R77476 | Electrical Connector Assy | 1 | (A) | ||
| 4 | R77477 | Electrical Connector Assy | 1 | (A) | ||
| 5 | R77479 | Elec. Connector Terminal | 1 | (A) | ||
| 6 | R77480 | Electrical Connector Assy | 1 | (A) | ||
| 7 | R77481 | Electrical Connector Assy | 1 | (A) | ||
| 8 | R77482 | Electrical Connector Assy | 1 | |||
| 9 | H104855 | Electrical Connector Assy | 1 | |||
| 10 | U46662 | Elec. Connector Terminal | 1 | (E) (F) | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 11 | R65595 | Elec. Connector Terminal | 1 | (G) (J) | ||
| 12 | T28585 | Electrical Connector Assy | 1 | (B) | ||
| 13 | R77475 | Electrical Connector Assy | 1 | (B) | ||
| 14 | T28586 | Electrical Connector Assy | 1 | (A) | ||
| 15 | R77478 | Electrical Connector Assy | 1 | (A) | ||
| 16 | R77483 | Electrical Connector Assy | 1 | |||
| 17 | R48887 | Electrical Connector Assy | 1 | |||
| 18 | T34067 | Elec. Connector Terminal | 1 | (E) (F) | ||
| 19 | R77484 | Elec. Connector Terminal | 1 | (G) (J) | ||
| 20 | U46370 | Electrical Connector Assy | 1 | (B) | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 21 | R77485 | Elec. Connector Terminal | 1 | (C) (F) | ||
| 22 | R77486 | Elec. Connector Terminal | 1 | (E) | ||
| 23 | R77487 | Electrical Connector Assy | 1 | (B) | ||
| 24 | TY16063 | Wire | 1 | 15m (50") 10 GA. | ||
| TY16069 | Wire | 1 | 30.5m (100") 12 GA. | |||
| TY16076 | Wire | 1 | 30.5m (100") 14 GA. | |||
| TY16078 | Wire | 1 | 30.5m (100") 16 GA. | |||
| TY16086 | Wire | 1 | 30.5m (100") 18 GA. | |||
| TY16089 | Wire | 1 | 30.5m (100") 20 GA. | |||
| 25 | R77462 | Elec. Connector Terminal | 1 | (K) 20 - 22 or 24 GA. Wire | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 26 | R77464 | Elec. Connector Terminal | 1 | (H) (L) | ||
| 27 | H118430 | Electrical Connector Assy | 1 | 37 Way | ||
| 28 | R77458 | Elec.Connect Locking Device | 1 | (A) Size 23 | ||
| R77459 | Elec.Connect Locking Device | 1 | (A) Size 17 | |||
| R77460 | Elec.Connect Locking Device | 1 | (A) Size 13 | |||
| R77461 | Elec.Connect Locking Device | 1 | (A) Size 11 | |||
| 29 | R77457 | Elec. Connector Terminal | 1 | 37 Way | ||
| 30 | R77463 | Elec. Connector Terminal | 1 | (K) 20 - 22 or 24 GA. Wire | ||
| 31 | R77465 | Elec. Connector Terminal | 1 | (H) (L) | ||
| 32 | R77468 | Elec. Connector Terminal | 1 | (I) 18 GA. | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 33 | R77466 | Electrical Connector Assy | 1 | (A) | ||
| 34 | R77467 | Electrical Connector Assy | 1 | (A) | ||
| 35 | R77469 | Elec. Connector Terminal | 1 | (I) 18 GA. | ||
| 36 | R77456 | Electrical Connector Assy | 1 |
Electrical Connectors(Электрические Разъемы)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | RE11156 | Elec. Connector Terminal | 1 | (B) Male | ||
| 2 | RE11157 | Elec. Connector Terminal | 1 | (B) Female | ||
| 3 | R70222 | Elec. Connector Terminal | 1 | (D) (H) | ||
| 4 | R70221 | Elec. Connector Terminal | 1 | (E) | ||
| 5 | R70219 | Plug | 1 | (A) 10 Way | ||
| R70217 | Plug | 1 | (A) 7 Way | |||
| R70215 | Plug | 1 | (A) 4 Way | |||
| R70213 | Elec. Connector Housing | 1 | (A) 3 Way | |||
| R70211 | Electrical Connector Assy | 1 | (A) 2 Way | |||
| 6 | R70218 | Receptacle | 1 | (A) 10 Way | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| R70216 | Receptacle | 1 | (A) 7 Way | |||
| R70214 | Receptacle | 1 | (A) 4 Way | |||
| R70212 | Receptacle | 1 | (A) 3 Way | |||
| R70210 | Receptacle | 1 | (A) 2 Way | |||
| 7 | AR91793 | Elec. Connector Terminal | 1 | (D) | ||
| 8 | R30378 | Spring | 1 | (C) | ||
| 9 | R77474 | Electrical Connector Assy | 1 | (A) 6 Way | ||
| 10 | R77470 | Elec. Connector Terminal | 1 | (I) 16 - 18 - 20 or 22 GA. Wire; Splice | ||
| R77471 | Elec. Connector Terminal | 1 | (C) (G) Splice | |||
| R77472 | Elec. Connector Terminal | 1 | (A) 8 GA. Wire; Splice | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| R77473 | Elec. Connector Terminal | 1 | (A) 6 GA. Wire; Splice | |||
| 11 | R65607 | Elec. Connector Terminal | 1 | (C) 18 or 20 GA. Wire | ||
| 12 | U46664 | Elec. Connector Terminal | 1 | (C) (F) | ||
| 13 | R32026 | Elec. Connector Terminal | 1 | (D) (F) | ||
| 14 | R65602 | Elec. Connector Terminal | 1 | (C) 16 or 18 GA. Wire | ||
| 15 | R70220 | Elec. Connector Terminal | 1 | (C) 18 or 20 GA. Wire | ||
| 16 | R77489 | Elec. Connector Terminal | 1 | (D) 14 - 16 - 18 or 20 GA. Wire; No. 10 Eyelet | ||
| R32019 | Elec. Connector Terminal | 1 | (D) (G) No. 10 Eyelet | |||
| R77488 | Elec. Connector Terminal | 1 | (D) 14 - 16 - 18 or 20 GA. Wire; 3/8" Eyelet | |||
| R32023 | Elec. Connector Terminal | 1 | (D) (G) 1/2" Eyelet | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 17 | R77496 | Elec. Connector Terminal | 1 | (D) (F) No. 8 Spade | ||
| R77495 | Elec. Connector Terminal | 1 | (D) 18 GA. Wire; No. 10 Spade | |||
| 18 | R77497 | Elec. Connector Terminal | 1 | (D) (F) No. 6 Spade | ||
| 19 | R77491 | Elec. Connector Terminal | 1 | (D) (G) 3/8" Eyelet | ||
| R77492 | Elec. Connector Terminal | 1 | (D) (G) 1/4" Eyelet | |||
| 20 | R65606 | Elec. Connector Terminal | 1 | (D) 6 or 8 GA. Wire; 1/4" Eyelet | ||
| 21 | R77502 | Tube | 1 | (J) 3/8"; Heat Shrink | ||
| R77503 | Tube | 1 | (J) 3/16"; Heat Shrink |
Electrical Connectors(Электрические Разъемы)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AA33322 | Elec. Connector Terminal | 30 | Mate-N-Loc | ||
| 2 | AE44392 | Electrical Connector Assy | 1 | 4 Socket Plug | ||
| 3 | AE44932 | Electrical Connector Assy | 1 | 4 Pin | ||
| 4 | R78052 | Electrical Connector Assy | 6 | Weather Pack™ | ||
| 5 | JDG361 | Special Service Tool | 2 | |||
| JDG362 | Special Service Tool | 3 | ||||
| 6 | R32016 | Elec. Connector Terminal | 40 | 14 - 16 GA.; Primary, No.10 Spade | ||
| R32017 | Elec. Connector Terminal | 25 | 10 - 12 GA.; No.10 Spade | |||
| 7 | R32018 | Elec. Connector Terminal | 25 | 14 - 16 GA; Primary, No.10 Eyelet | ||
| R32019 | Elec. Connector Terminal | 25 | 10 - 12 GA.; Primary, No.10 Eyelet | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| R32021 | Elec. Connector Terminal | 25 | 10 - 12 GA., 1/4" Eyelet; Primary | |||
| R32022 | Elec. Connector Terminal | 25 | 10 - 12 GA., 3/8" Eyelet; Primary | |||
| R32023 | Elec. Connector Terminal | 25 | 10 - 12 GA., 1/2" Eyelet; Primary | |||
| 8 | R32027 | Elec. Connector Terminal | 25 | 14 - 16 GA.; Splice | ||
| R32028 | Elec. Connector Terminal | 25 | 10 - 12 GA.; Splice | |||
| 9 | R78053 | Electrical Connector Assy | 6 | 2-Way, Weather Pack™ | ||
| 10 | R78054 | Electrical Connector Assy | 3 | 3-Way, Weather Pack™ | ||
| 11 | R65596 | Elec. Connector Terminal | 12 | Male, 10 GA., or Two 14 GA. Cables | ||
| 12 | R65598 | Elec. Connector Terminal | 12 | 14 - 16 GA.; Male, Short | ||
| 13 | R65599 | Elec. Connector Terminal | 12 | 14 - 16 GA., 1/4" Eyelet | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 14 | R65600 | Elec. Connector Terminal | 25 | 14 - 16 GA.; Female | ||
| 15 | R65601 | Elec. Connector Terminal | 12 | Twin-Lock, Two 16 GA. Cables | ||
| 16 | R65604 | Elec. Connector Accessory | 25 | 14 - 18 GA. | ||
| R65605 | Elec. Connector Accessory | 2 | 8 - 12 GA. | |||
| 17 | R65606 | Elec. Connector Terminal | 12 | 6 - 8 GA., 1/4" Eyelet | ||
| 18 | R65607 | Elec. Connector Terminal | 25 | 18 - 20 GA. | ||
| 19 | R78055 | Electrical Connector Assy | 3 | 4-Way, Weather Pack™ | ||
| .. | TY26194 | Electrical Repair Kit | 1 |
Electrical Connectors(Электрические Разъемы)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | R78056 | Electrical Connector Assy | 3 | Weather Pack™ | ||
| 2 | R78057 | Elec. Connector Terminal | 25 | 18 or 20 GA. Wire; No. 19 | ||
| RE12331 | Electrical Connector Assy | 50 | ||||
| 3 | R78058 | Electrical Connector Assy | 50 | 18 or 20 GA. Wire; No. 19 | ||
| R78061 | Elec. Connector Terminal | 50 | 14 or 16 GA. Wire; No. 15 | |||
| 4 | R78059 | Electrical Connector Assy | 50 | 18 or 20 GA. Wire; Green | ||
| R78062 | Elec. Connector Seal | 50 | 14 GA. Wire; Blue | |||
| R78063 | Elec. Connector Seal | 50 | ||||
| 5 | R78064 | Elec. Connector Cavity Plug | 50 | Weather Pack™ | ||
| 6 | R78065 | Elec. Connector Terminal | 25 | 16 or 18 GA. Wire | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| R78067 | Elec. Connector Terminal | 20 | 12 or 14 GA. Wire | |||
| 7 | R78066 | Elec. Connector Terminal | 25 | 16 or 18 GA. Wire | ||
| R78068 | Elec. Connector Terminal | 20 | 12 or 14 GA. Wire | |||
| 8 | R78069 | Elec. Connector Cavity Plug | 30 | |||
| 9 | RE12362 | Electrical Connector Assy | 6 | 1-Way, Weather Pack™ | ||
| 10 | RE12363 | Elec. Connector Terminal | 6 | 2-Way, Weather Pack™ | ||
| 11 | RE12364 | Electrical Connector Assy | 3 | 3-Way, Weather Pack™ | ||
| 12 | RE12365 | Electrical Connector Assy | 3 | 4-Way, Weather Pack™ | ||
| 13 | RE12366 | Electrical Connector Assy | 3 | 6-Way, Weather Pack™ | ||
| 14 | T28583 | Elec. Connector Housing | 25 | 1-Way, Lock (FeMale) | ||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 15 | T28585 | Electrical Connector Assy | 25 | 1-Way, Lock (Male) | ||
| 16 | T28586 | Electrical Connector Assy | 12 | 2-Way, Lock (Male) | ||
| 17 | T34067 | Elec. Connector Terminal | 50 | 14 or 16 GA. Wire | ||
| 18 | U46662 | Elec. Connector Terminal | 50 | 14 or 16 GA. Wire; Female | ||
| 19 | U46663 | Elec. Connector Terminal | 20 | Female | ||
| 20 | U46664 | Elec. Connector Terminal | 20 | 14 or 16 GA. Wire; Male | ||
| .. | TY26194 | Electrical Repair Kit | 1 |
Wiring Harness, In-Cab Compressor Power(Жгут Проводов InCab Мощность Компрессора)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AA76124 | Wiring Harness | 1 | In-Cab Compressor Power | ||
| 2 | AE44929 | Electrical Connector Assy | 1 | Convenience Plug 1 | ||
| 3 | RE12363 | Elec. Connector Terminal | 1 | Compressor | ||
| 4 | 57M8729 | Elec. Connector Housing | 1 | Convenience Plug 2 | ||
| 5 | 57M9131 | Elec. Connector Terminal | 1 | Convenience Jumper | ||
| 6 | 57M10672 | Elec. Connector Housing | 1 | Convenience |
Harness, Radar Adapter - 7000 CAB(Проводов радар кабины адаптер )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AA38363 | Wiring Harness | 1 | Tractor Radar Signal Harness, From Tractor Radar to Monitor C onsole For 7000 Series Tractors |
Resistor, Integral Height Input, Planter(Резистор Интегральный Высота Входного Плантатор)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | AA73932 | Wiring Harness | 1 |
Mount, Planter Radar - 8000 Series(РЛС Серии Mount Плантатор )
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | A53955 | Bracket | 1 | |||
| 1A | A61490 | Bracket | 1 | |||
| 2 | A78364 | Tie Band | 6 | |||
| 3 | 19M8174 | Cap Screw | 2 | M20 X 35 | ||
| 4 | H77698 | Tie Band | 4 | |||
| 5 | 19H2337 | Cap Screw | 4 | 1/4" X 4" | ||
| 6 | AA38559 | Wiring Harness | 1 | |||
| 7 | 24H1287 | Washer | 4 | 9/32" X 5/8" X 0.065" | ||
| 8 | K40001 | Lock Nut | 4 | |||
| 9 | 57M7257 | Elec. Connector Housing | 1 | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 10 | R104919 | Elec. Connector Terminal | 1 | |||
| 11 | 57M7258 | Elec. Connector Seal | 1 | |||
| 12 | 57M7317 | Elec. Connector Accessory | 1 | |||
| 13 | 57M7421 | Elec. Connector Housing | 1 | |||
| 14 | ...... | Elec. Connector Terminal | 1 |
Radar Distance Sensor and Radar Bracket(Радарный датчик расстояния и радар кронштейн)
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
|---|---|---|---|---|---|---|
| 1 | A38207 | Bushing | 1 | 30-50 Series 4-Wheel Drive Only | ||
| 2 | AA35686 | Elec. Connector Accessory | 1 | |||
| 3 | AE44391 | Electrical Connector Assy | 1 | |||
| 4 | R77461 | Elec.Connect Locking Device | 1 | Size (11) | ||
| 5 | R77464 | Elec. Connector Terminal | 1 | 14-16 OR 18 GA. Wire | ||
| 6 | AA41337 | Sensor | 1 | |||
| 7 | A61490 | Bracket | 1 | |||
| 8 | 03H1528 | Bolt | 2 | 5/8" X 1-1/2" | ||
| 12H294 | Lock Washer | 2 | 5/8" | |||
| 14H1039 | Nut | 2 | 5/8" | |||
| key | PART NO. | PART NAME | QTY | SERIAL NO. | REMARKS | |
| 9 | 19H1872 | Cap Screw | 1 | 5/8" X 6" 30-50 Series 4-Wheel Drive Only | ||
| 10 | 19H2337 | Cap Screw | 4 | 1/4" X 4" | ||
| 24H1287 | Washer | 4 | 9/32" X 5/8" X 0.065" | |||
| K40001 | Lock Nut | 4 |
